Ionization Flame Safeguard IG47

The IG47 ionization flame guard series signals the presence of a flame by means of an LED and by closing a potential-free relay contact. The low space requirement due to the design as housing in connection with the DIN rail mounting or in 19 ” technology facilitate the installation and the electrical connection. The flame monitor is approved for continuous operation and certified according to SIL2. The IG47 series is available for all common operating voltages.

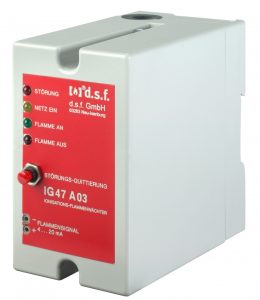

IG47-A03
  • DIN-rail mounting
  • Continuous operation
  • SIL 2
  • Self-check
  • Power supply 230V AC, 50/60Hz optional 110V / 120V AC
  • Flame ON/OFF LED indicator
  • FFRT 1 second or FFRT 3 seconds adjustable
  • 4…20mA Output
  • Self-diagnosis and shutdown of component faults
For more details, please refer to the data sheet.



IG47-A02
Description as IG47-A03, but with 24V DC power supply

For more details, please refer to the data sheet.

IG47-1903
  • 19 “technology
  • Continuous operation
  • SIL2
  • Self-check
  • Power supply 230V AC, 50/60Hz optional 110V / 120V AC
  • Flame ON/OFF LED indicator
  • FFRT 1 second or FFRT 3 seconds adjustable
  • 4…20mA Output
  • Self-diagnosis and shutdown of component faults
For more details, please refer to the data sheet.

IG47-1903
Description as IG47-1903, but with 24V DC power supply

For more details, please refer to the data sheet.
