Picture shows HZG52-HEB-02 with Anaconda protection hose

Picture shows HZG52-HEB-02-1000 with fix mounted ignition electrode

Description:

The portable High Energy Igniter HZG52 is for secure hand operated ignition of gas and light oil burner in refineries, industrial furnaces, in the steel industry and in the petrochemical industry.
It includes an electronic, a 2kV ignition module and a charger for the accumulator. The portable hand igniter is equipped with a push button to start the ignition.

Characteristics:

  • Easy handling
  • Replaceable ignition lance
  • No ext. Power supply required for battery version

Ignition electrodes are optional and in several lengths available.

HZG52-HEN-02 High Energy Hand Igniter, 230V, 50/60Hz

  • Output voltage 2KV, ignition energy 4 joules
  • Power supply 230V / 50 / 60Hz with 12m mains connection cable
  • 1.5m long ignition cable conducted in a Anaconda protective hose and attached handle
  • Carrying belt, power consumption 0.2A, ignition frequency approx. 2 pulses / sec.
  • Temperature range -20 ° C to 65 ° C
  • Approx. weight, 3 kg

HZG52-HEB-02 High Energy Hand Igniter with battery

  • Output voltage 2KV, ignition energy 4 joules
  • Charging voltage 230V / 50 / 60Hz with 2.5m mains connection cable
  • 1.5m long ignition cable conducted in a Anaconda protective hose and attached handle
  • Carrying strap, power consumption 0.2A, ignition frequency approx. 2 pulses / sec.
  • Battery availability approx. 1h, temperature range -20 ° C to 65 ° C
  • Approx. weight, 3 kg

Also available as version with fix connected ignition electrode.

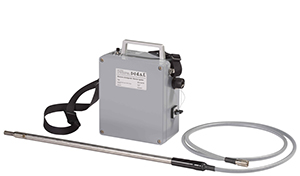

BZ–V 24 TK High Energy Hand Igniter

Description:

The portable High Energy Igniter BZ –V 24 TK has been designed for the safe hand operated ignition of gas and oil burner in refineries, industrial furnaces, steel industry and in the petrochemical industry.
It consists of an aluminum die-cast housing with carrying handle, push-button and carrying strap, in which the power electronics, as well as two maintenance-free, sealed lead-acid accumulators are installed. They are suitable for use with frequent charge-discharge cycles. To protect battery lifetime, an additional LED will show the low state of charge.

Characteristics:

  • Easy handling
  • Replaceable ignition tip
  • No ext. Power supply required for battery version

BZ-V 24 TK High Energy Hand Igniter with lead-acid batteries

  • BZ-V 24 TK High Energy Hand Igniter with lead-acid batteries
  • Charging voltage 24V DC by separate charger
  • 2m long ignition cable with fix connected handle
  • Carrying strap, ignition frequency approx. 5 pulses / sec.
  • Battery availability approx. 1h, temperature range -15° C to 60° C
  • Approx. weight, 5,3 kg

Ignition electrodes are optional and in several lengths available.
For more details, please refer to the data sheet.
